Australia’s Best Quality Picking Solutions
SAFE
Red Hills Picking Solutions has been providing the fruit-industry with high-quality, safe cherry-pickers for over 30 years.
Australia’s Best Quality Picking Solutions
DEPENDABLE
Red Hills’ cherry pickers are proven to be superior to direct wheel moto systems for both reliability and service life.
Australia’s Best Quality Picking Solutions
ADAPTABLE
Red Hills’ cherry pickers have been developed to suit a variety of fruit harvesting such as avocados, mangoes, lychees, apples, and pears.
Our Picking Products
Red Hills’ cherry pickers are available in 4m, 5.1m and 6.2m platform heights and use reduction hub drive motors and hydraulic brake systems – proven to be superior in reliability and service life when compared to direct wheel motor systems. All products are also available with drive tracks in place of wheels, for all terrain and for tree bed protection.
Our machines are suitable for a variety of uses:
- Fruit Picking
- Tree Pruning
- Building Maintenance
- Shed Building
- Street Lighting Maintenance
Our range

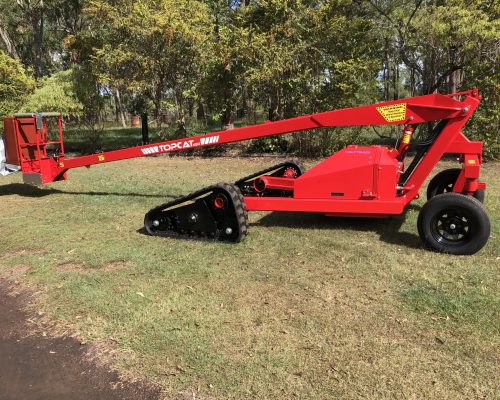

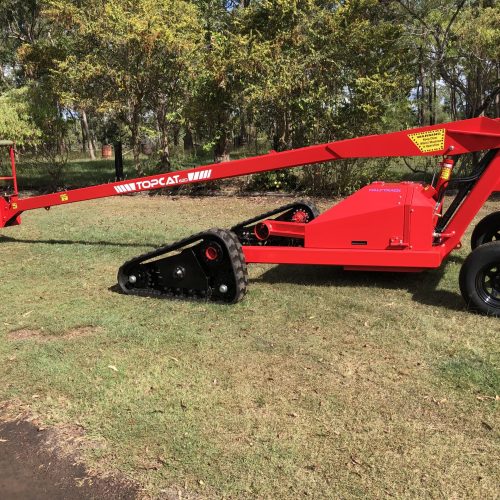

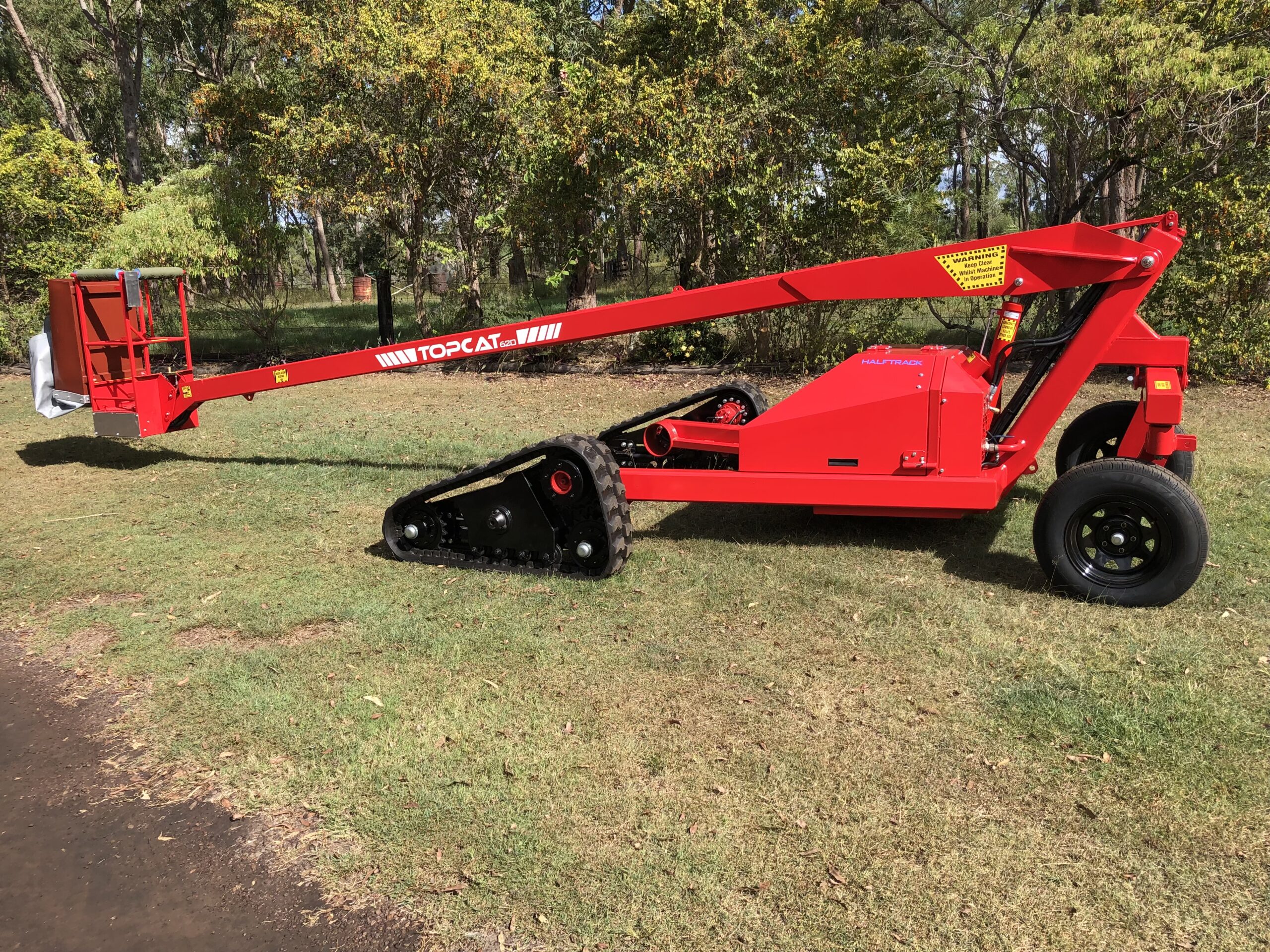

TOPCAT 620 half track
- Rubber half-tracks to help with traction and minimize soil compaction.
- 17.5 deg, slope rating, with audible alarm
- Fail-safe brakes.
- Emergency lowering valves in the engine bay and on the operator platform.
- 2-speed hydraulics, giving good ground speed when travelling. High speed will cut out when the platform is above 2 meters.
- 30ltr alloy fuel tank
- Full steel bonnets. (Bonnets now swing outwards to open, giving full access to the engine bay)

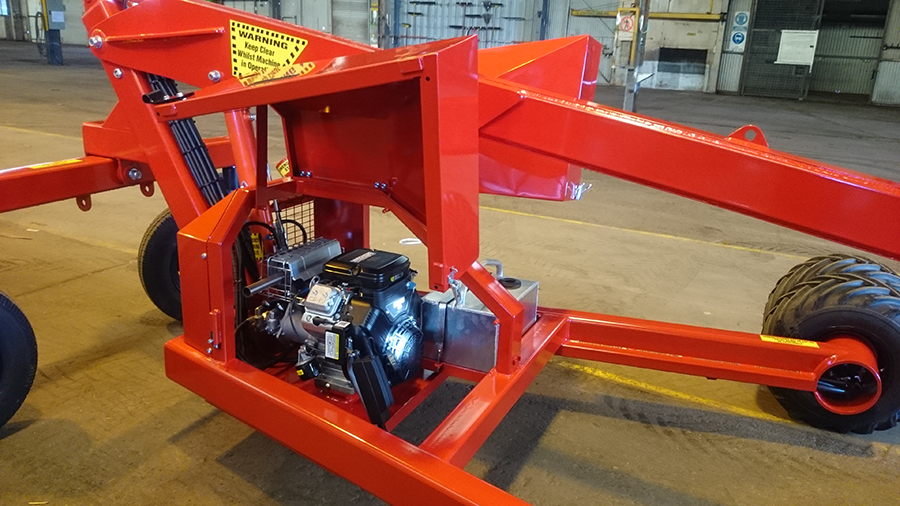

- 23hp Briggs and Stratton engine.
- Poly fruit bin with liner and half flap.
- Free wheeling hubs
- Dual castor
- Low-maintenance drive system
- All components/spare parts are stocked in Australia and in most cases accessible locally or overnight.
- Design registered and compliant with AS1418 pt10 and WH&S

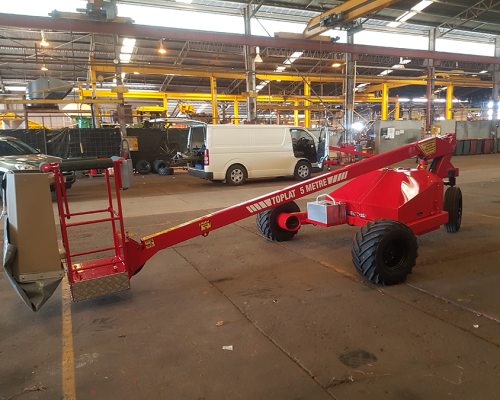

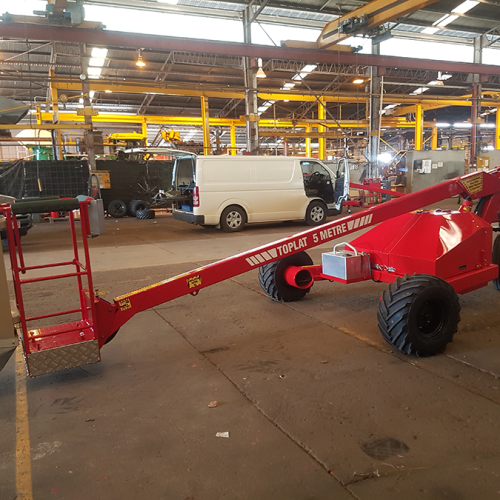

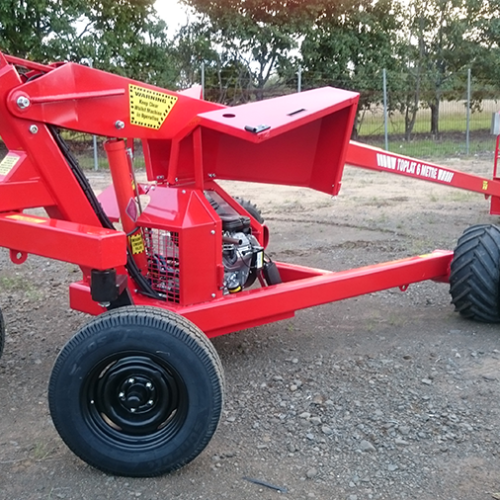

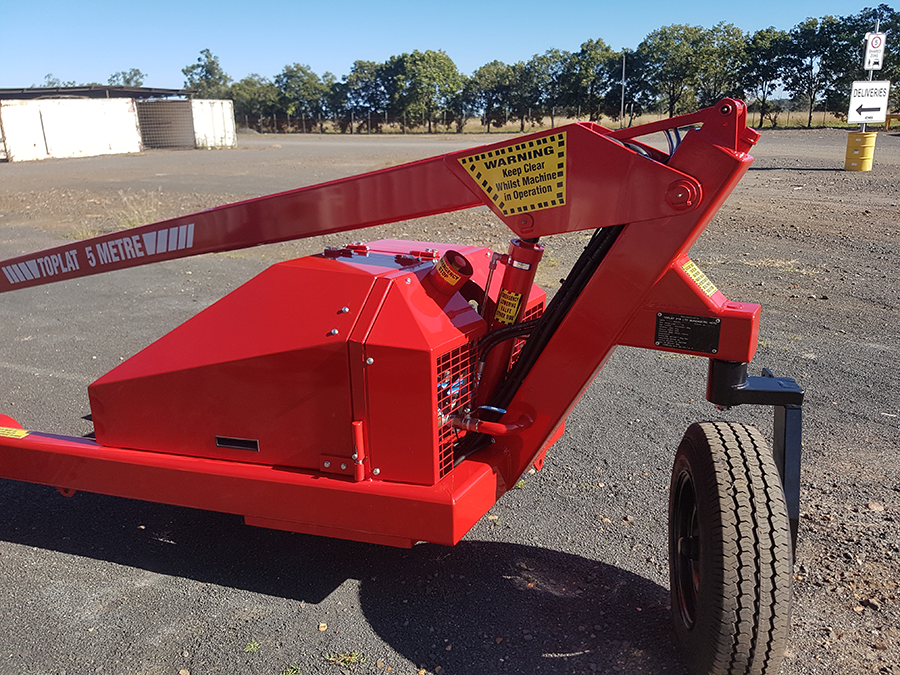

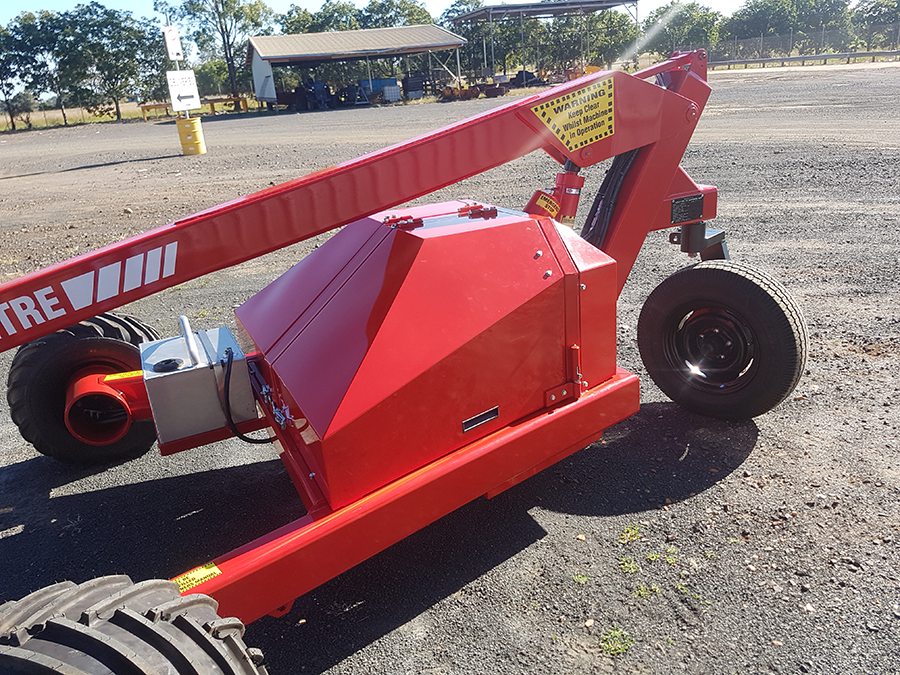

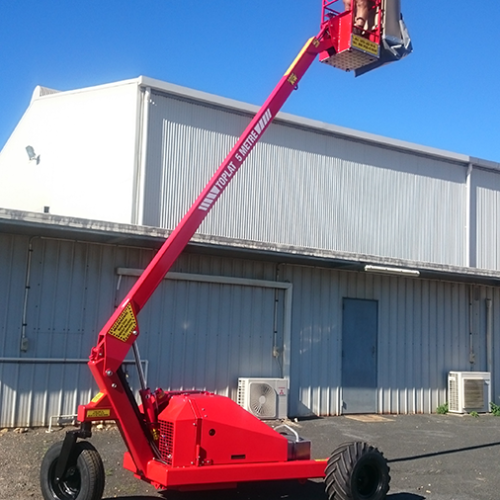

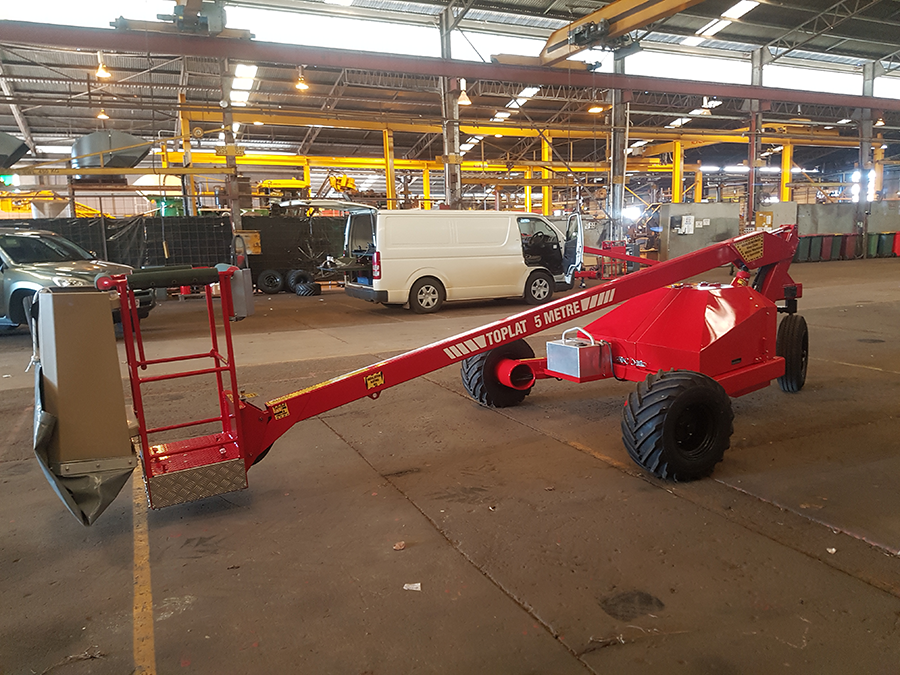

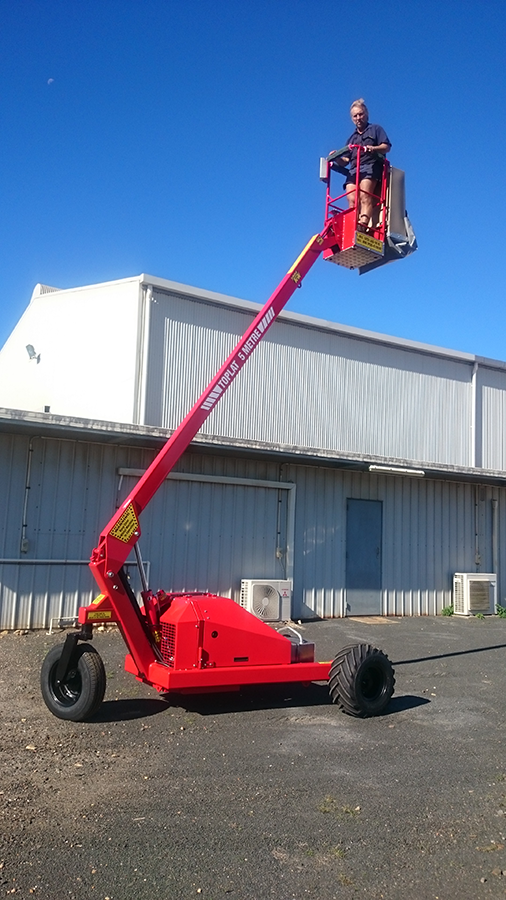

TOPLAT 620
- 3-wheel (8.5 deg. Slope rating) and 4-wheel (12.5deg slope rating) options available
- 4m, 5m, and 6m options available
- Water-filled high flotation tires.
- Audible slope alarm.
- Fail-safe brakes.
- Emergency lowering valves in the engine bay and on the operator platform.
- 2-speed hydraulics, giving good ground speed when travelling. High speed will cut out when the platform is above 2 meters.
- 30ltr alloy fuel tank
- Full steel bonnets. (bonnets now swing outwards to open, giving full access to the engine bay

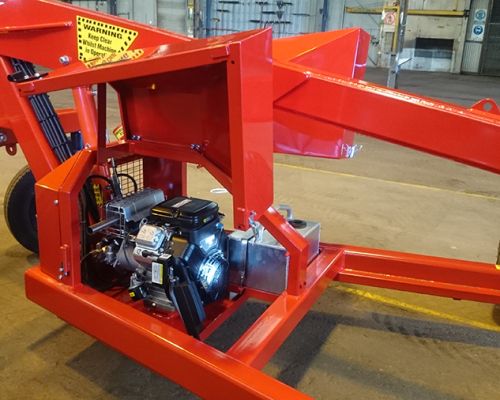

- 18hp Briggs and Stratton engine
- Poly fruit bin with liner and half flap
- Free wheeling hubs
- Single-wheel or dual-wheel castor
- Low-maintenance drive system
- All components/spare parts are stocked in Australia and in most cases accessible locally or overnight.
- Design registered and compliant with AS1418 pt10 and WH&S
Reliable | Economical | Safe
Little
Downtime
Red Hills machines work all season, with minimum downtime, so you can concentrate on the important things.
Easy Maintenance
Their straightforward design makes these cherry pickers easily accessible for routine maintenance and cleaning.
1 year
Warranty
All machines bought from Red Hill Picking Solutions come with a 12-month parts and labour warranty.
Our Technical Details
All Red Hills machines are sold with direct hydraulic foot controls for better picking efficiency.
Standard features include:
- Fully compliant with Workplace Health & Safety
- Auto fail-safe brakes
- High flotation tyres
- Full hydraulic controls system
- 18HP or 23HP Engine
- 2 Speed drive with auto lockout
- Fully lockable steel bonnet
- 2 Emergency stop activators
- 2 Emergency lowering valves
- Audible level alarm
- Hydraulic cylinder lock valves
- Poly Fruit Bin
- Bucket padding
- Harness point
- Self-locking gate with mid-rail
- Operator manuals & logbooks
- Hour meter
- 2 pack Polyurethane paint or Epoxy paint
- 30 litre alloy fuel tank
- Freewheeling hubs
Optional extras include:
- Pruning Shields
- 3-cylinder air compressor & tank
- AUX hydraulics to bucket
- Bin forks
- Dual castor (12.5 degrees)
- Tandem 4WD Tracks
- Purpose built trailer
- Tool carrier
Spare Parts
Drive motor conversion kits also available.
Request Specifications
About Redhill Picking Solutions
Red Hills Picking Solutions is a family-owned manufacturer of high-quality cherry pickers in the city of Bundaberg in the Wide Bay-Burnett region of Queensland.
We are a Queensland-owned and operated company providing quality equipment and machinery to the Australian fruit and vegetable growing industry. We designed and built our very first cherry picker in the mid-1980s with Bartlett Engineering in Gayndah, Queensland, and were primarily for use in the citrus industry.
With a reputation based on quality, we pride ourselves on providing Australian-made machinery and equipment to our farming community. Redhill cherry pickers have gained a strong record of being a dependable, economical, and safe way to harvest and manage tree crops throughout Australia.
